automatic hot sauce filling machine, chili sauce filling machine, tomato sauce filling machine

Product Description

Product Description

Automatic hot sauce Filling Machine



Specifications

Automatic Tomato Paste Filling Machine / Filling Equipment
1,Usde for:Jam
2,Controlled by:PLC
3,CE ISO

Automatic Tomato Paste Filling Machine / Filling Equipment
1,Usde for:Jam
2,Controlled by:PLC
3,CE ISO

Introduction:

This ketchup filling machine can be used for fixed amount small package filling,straight line type filling,

metical, electric, apparatus control of all sorts of viscous and no viscous,erosive Liquid,such as  tomato sauce, plant oil chemical,liquid,daily chemical industry. It is rather simple and rapid to change items,the design is quite distinct,the property is very advantageous,its appearance corresponds to international concept for mechanical equipment.

1,Advanced design



   1.1 The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes.

   1.2 Short filling circle, high production capacity.

   1.3 Changing filling circle, high production capacity.

   1.4 User may choose the filling volume and decide the filling heads per own production capacity.

   1.5 The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.

   1.6 Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

2. Unique filling way

   2.1 Selecting straight bottle-feeding and bottle-discharging in group, make the filling function extend, the vessels of all kinds of shape are got effective filling.

   2.2 Using the world advanced gas filling valve, ensure the filling process non-drop and non-drool.

   2.3 Stronger PLC software support, may realize the ideal filling operation.

   2.4 Friendly person-machine interface, all operations are completed on the touching color screen.

3. Accurate measurement control

   3.1 Using fixed sprue parameter to control the filling time realizing the filling of the different measurements.

   3.2 The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.

   3.3 Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.

   3.4 The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.

   3.5 More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.

Main parameters:

Number of heads: 12heads

Filling volume: 0.25L-1000L

Capacity: 1000-4000bph

Filling tolerance:≤0.5%

Power consummation: 4.0Kw

Gas pressure: 0.6-0.7Mpa

Configuration:

NO.

ITEM

SUPPLIER

Brand

1

Touch screen

Taiwan

WEINVEIW

2

PLC

Japan

Mitsubishi

3

Photo sensor for bottles

Japan

OPTEX

4

solenoid valve

Taiwan

SHAKO

5

Level button

USA

JOHNSON CONTROLS

6

angle seat Valve

Jointed

BURKERT

7

Other divices

Taiwan

Airtac

8

Power button

France

Schneider

9

Button

France

Schneider

10

frequency converter

France

Schneider

11

bottle- transport motor

China

Huangyan

12

Speed reducer

China

Jiao xing

13

Relay

Japan

Omron



automatic hot sauce filling machine, chili sauce filling machine, tomato sauce filling machine

automatic hot sauce filling machine, chili sauce filling machine, tomato sauce filling machine

automatic hot sauce filling machine, chili sauce filling machine, tomato sauce filling machine

automatic hot sauce filling machine, chili sauce filling machine, tomato sauce filling machine


Packaging & Shipping

 automatic hot sauce filling machine, chili sauce filling machine, tomato sauce filling machine



Our Services

 automatic hot sauce filling machine, chili sauce filling machine, tomato sauce filling machine

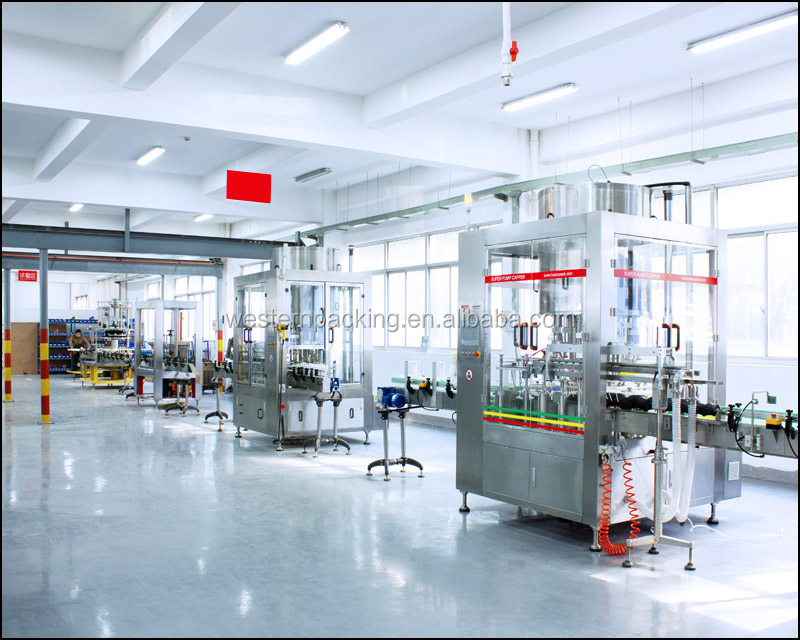

Company Information

 automatic hot sauce filling machine, chili sauce filling machine, tomato sauce filling machine

Contact us if you need more details on Automatic Hot Sauce Filling Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Chili Sauce Filling Machine、Tomato Sauce Filling Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
